Motic 1801 LED Cordless Monocular Microscope

Code: mic5914-promo 24

The 18 series from Motic features educational microscopes, ideal for school environments. Simple to handle, the rechargeable battery pack allows cordless usage of the LED illumination without mains...

ADD

List Price

£195.75 EACH

Your Price

£176.18 EACH

Save: £19.57 (10%)

£211.42 inc. VAT

OVERVIEW
SPECIFICATIONS
DOCUMENTS
RANGE

EA achromatic objectives in a 160mm finite system
Lockable 10X/18 eyepiece(s) provide an easy sample overview
70mW LED illumination system with intensity control
Rechargeable batteries for cordless usage
Substage condenser with iris diaphragm for quality illumination
Reversed 4-fold nosepiece gives space for trouble-free changing of slides
Plain stage with sample clips to x/y-stage with slide holder
Separate coarse/fine focus drive is ideal for teaching the first steps of microscope handling

Code	MIC5914	MIC5916	MIC5918

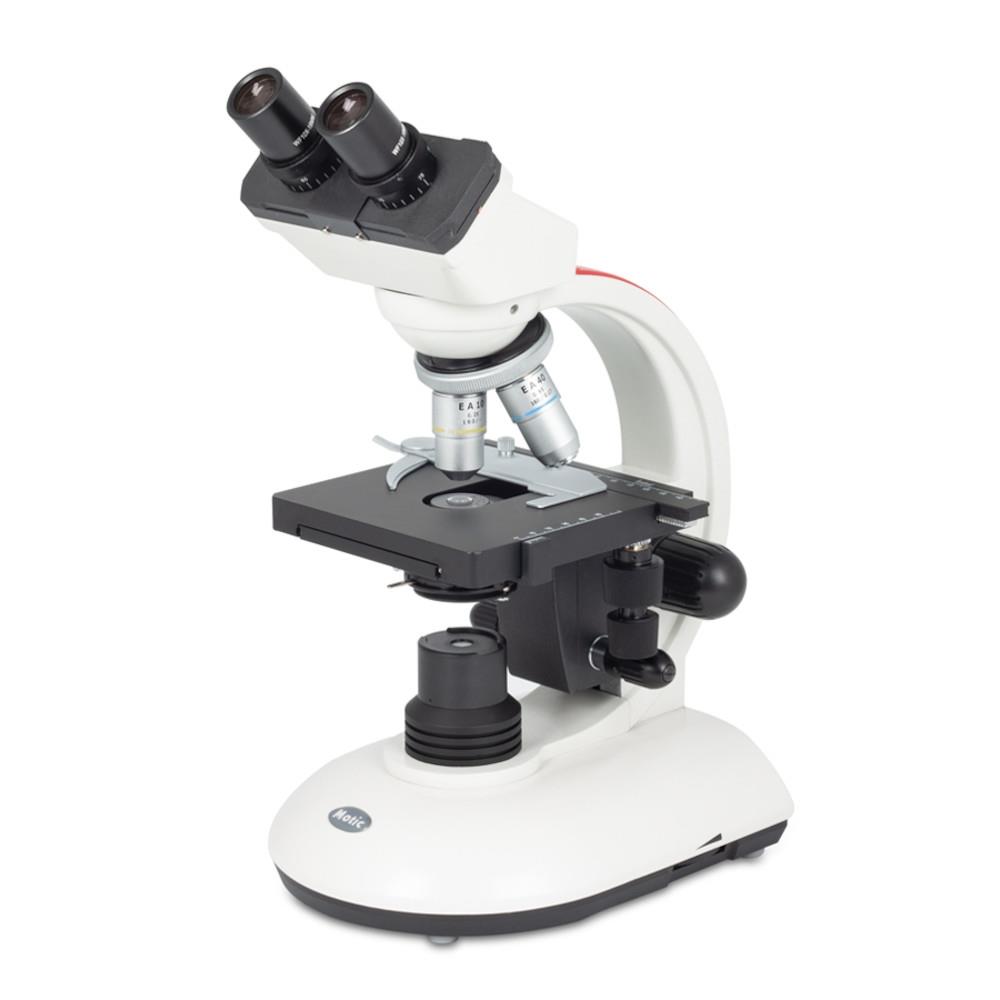

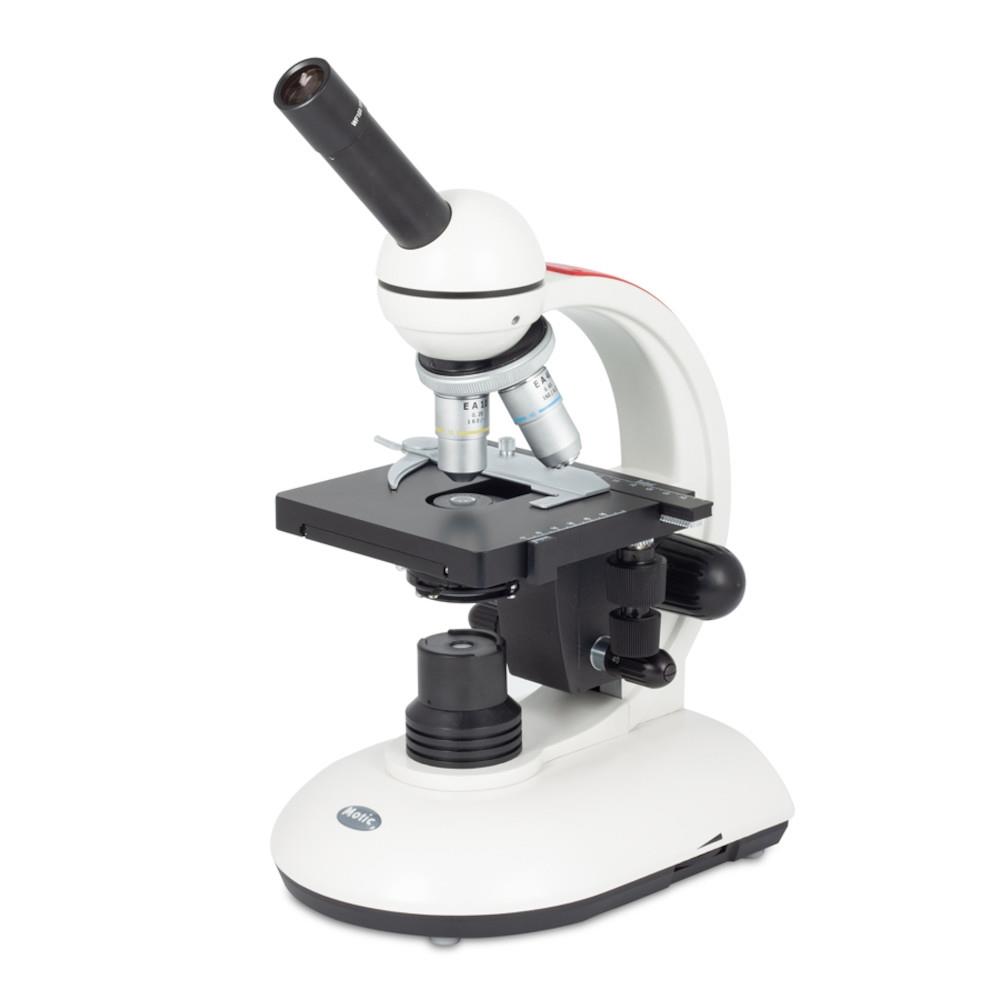

Model	1801	1802	1820
Observation Tube	Monocular	Monocular	Binocular - sliding type
Interpupillary Distance	-	-	55 - 75mm
Diopter Adjustment	-	-	On both tubes , +/- 5 diopter
Stage	Plain stage with sample clips	Built-in low position coaxial mechnical stage with sample holder	Built-in low position coaxial mechnical stage with sample holder
Stage Size	120 x 125mm	133 x 136mm	133 x 136mm
Eyepieces	WF10X/18mm with pointer, lockable	WF10X/18mm with pointer, lockable	WF10X/18mm
Condenser	Built-in 0.65 N.A. condenser with iris diaphragm	Focusable N.A. 1.25 Abbe Condenser with iris diaphragm	Focusable N.A. 1.25 Abbe Condenser with iris diaphragm
Inclination	45° inclined, 360° rotating
Optical System	Finite optical system, 160mm
Nosepiece	Reversed quadruple revolving nosepiece with click stops
Objectives (DIN)	4X/0.10, 10X/0.25, 40X/0.65/S
Focus Mechanism	Separate coarse and fine focusing system with tension adjustment
Fine Focus Precision	2µm minimum increment
Illumination	Battery/cordless LED 20mA, 3.5V, 70mW with intensity control
